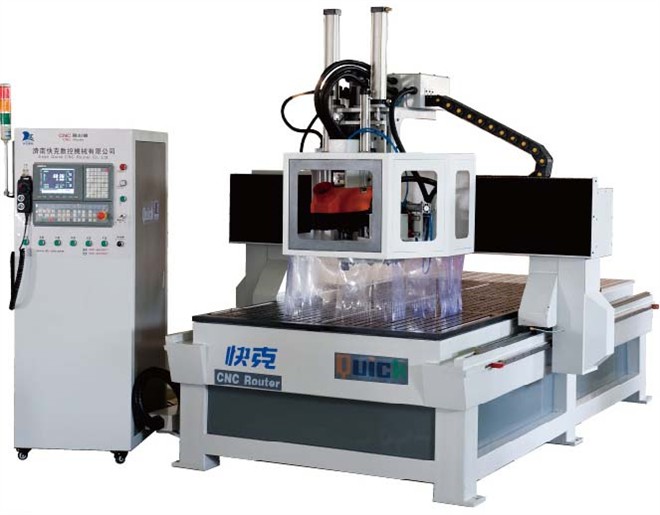

Model

K1325AT/F0808C

X-Y-Z axis working area

1,300 x 2,500 x 300mm

Machine size

2,650x 3,150mm

Resolutions

0.0025mm

Repositioning Resolution

0.02mm

X movement

rack and pinion, gear drive/Taiwan

Y-Z movement

ball screw drive/Germany

Guide

Linear ∮30 square/Taiwan

Max. speed

60,000mm/min

Max. cutting speed

30,000mm/min

Spindle power

8kw(aircooling)/Italy

Spindle speed

18,000rpm

Inverter power

11kw

Quantity of Tool Holder

8 sets

Drive motors

Servo/Japan

Working voltage

AC380V/50Hz, 3-phase

Command code

HPGL,G code

Computer interface

USB 2.0

Collet

ISO30-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

SYNTEC EMBED_CNC Control System

Packing dimensions

2300 x 3350 x 2280mm,2500kgs

Dust Collector

3.0Kw/380V-3P

Vacuum Pump

7.5kw Aircooling,Chinese

Oil Lubrication System

Automatic Feed
